IECEX Certified Gas Detector for CL2 and CLO2
Compact explosion-proof gas detector with wireless transmission capability for chlorine and chlorine dioxide gas concentration monitoring.
Product Overview
The MicMeta multi-gas detector features IP66/IP68 protection and can simultaneously detect 1-4 gases. With conventional CO and H2S sensors, it can monitor up to 5 gases concurrently.
This detector holds three major explosion-proof certifications: IECEX, ATEX, and China Explosion-proof, with an explosion-proof rating of Ex ia IICT4 Ga/Ex ia I Ma, making it suitable for use in both Zone 0 and Zone 1 hazardous areas.
Equipped with an LCD screen supporting Chinese/English language switching and gas unit conversion. Features two-level sound and light alarms with customizable settings, optional PC software for data download, and docking station for bump testing, calibration, configuration, and data recording.

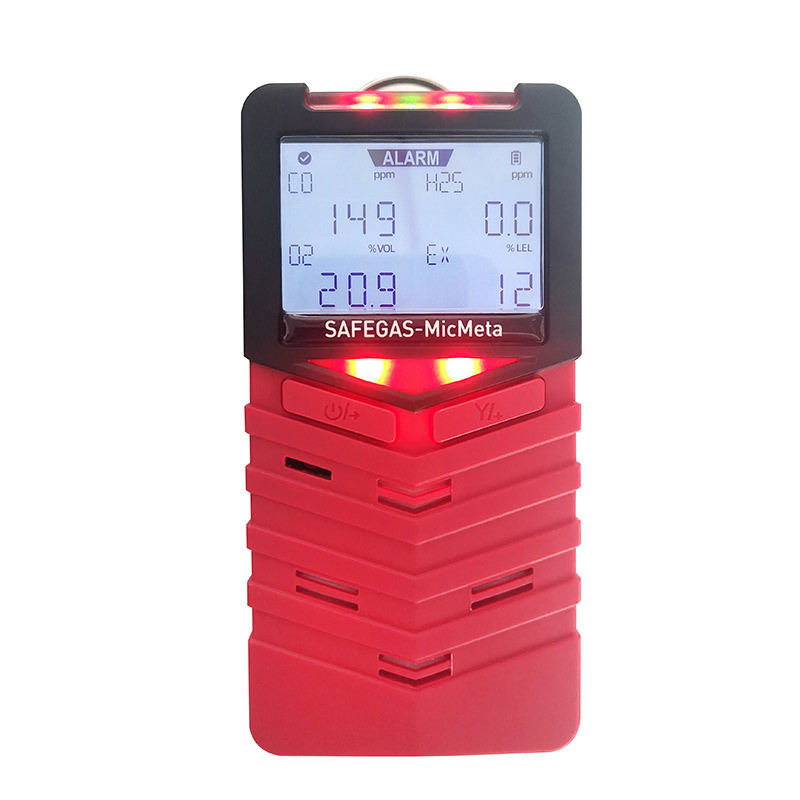

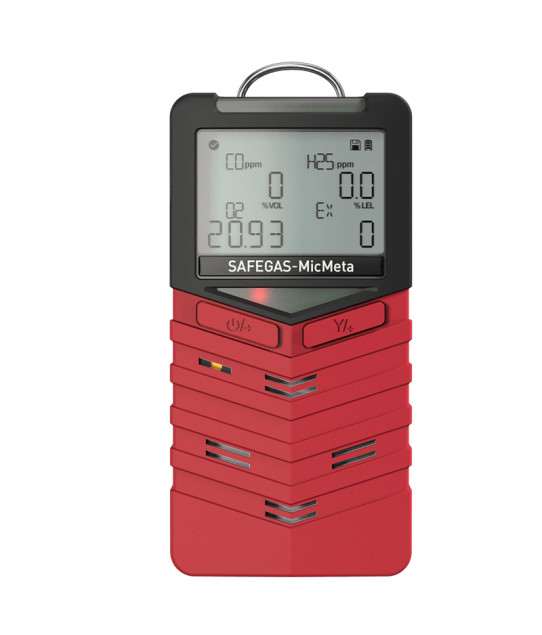

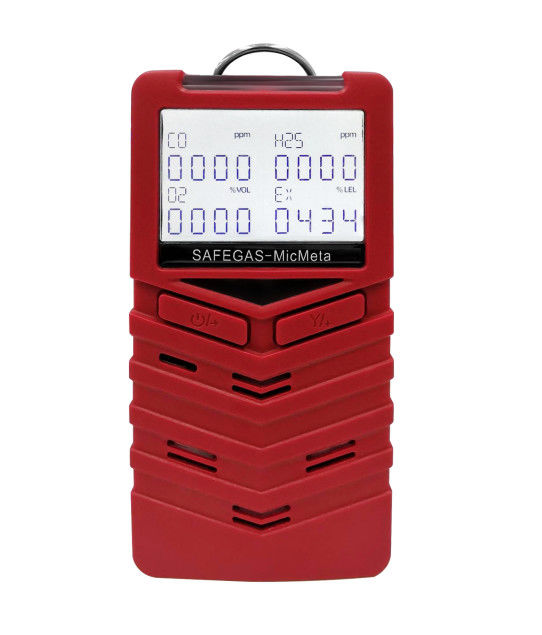

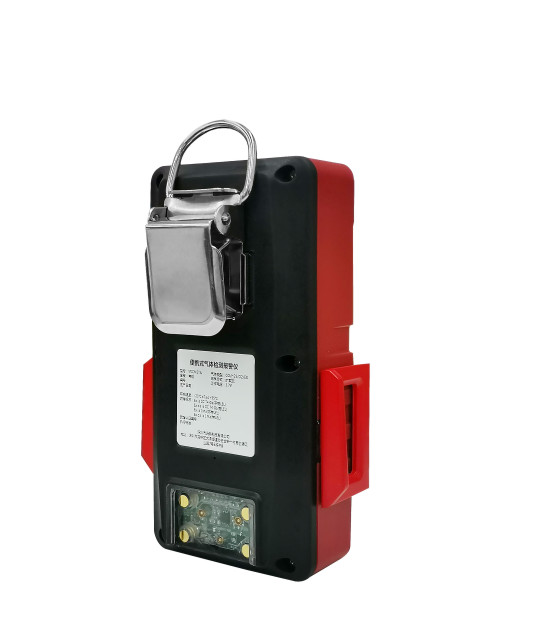

Product Images
Key Advantages
Compact and Lightweight
Small size with light weight (240g), robust and durable construction withstands drops up to 1.5 meters. IP66/IP68 rating provides effective waterproof and dustproof protection.
User-Friendly Operation
Simple two-button operation for easy use and configuration.
Bright Visual Alarm
Wide-angle visual alarm bar for increased visibility in all conditions.
EMC Tested
Successfully passed EMC anti-static interference tests for reliable operation in various environments.
Ergonomic Design
Comfortable, wear-resistant back clip that is lightweight for easy carrying throughout the workday.
Technical Specifications
| Parameter |
Specification |
| Sampling Method |
Diffusion suction |
| Gas Type |
CL2 and CLO2 |
| Measure Range |
Customizable, CL2 0-200PPM, CLO2 0-50PPM |
| Resolution |
0.1PPM, 1PPM |
| Response Time |
≤60S (T90) |
| Precision |
≤±5%FS or ±10% (depends on specific sensor) |
| Language |
Chinese/English |
| Automatic Functions |
Auto-test, calibration, auto-zero, MAX, MIN, STEL, TWA values |
| Unit Conversion |
PPM and mg/m³ switchable with automatic concentration conversion |
| Display |
Segment code LCD display |
| Calibration Platform |
DKM-MicMeta docking station (optional) |
| Data Recording |
1000 sets data records and 100 sets events records |
| Alarm System |
95dB buzzer (@30cm), vibration, flashing red bar, on-screen status indication, alarm lock; Diagnostic, battery undervoltage, man down alarms; All sensor alarm values settable |
| Battery |
3.7V rechargeable lithium battery, 2300mAh capacity |
| Working Hours |
Standby time 18h, charging time <6h |
| Wireless Transmission |
Bluetooth (optional), Lora (optional) |
| Explosion-proof Grade |
IECEx: Ex ia IIC T4 Ga, Ex ia I Ma
ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma |
| EU Regulations |
2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection Grade |
IP66/IP68 |
| Working Temperature |
-20°C~55°C |
| Humidity |
0-95%RH (non-condensing) |
| Environmental Pressure |
86～106Kpa |
| Size |
113*60*32mm (length * width * height) |
| Weight |
200g (with lithium battery) |
Detectable Gases
The MicMeta detector can monitor 1-5 gases simultaneously, including various combustible and toxic gases.
Applications
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining Operations
Why Choose Our Gas Detectors
- 25+ years of R&D team experience
- Company certifications: ISO9001, ISO45001
- Product certifications: IECEx, ATEX, CE
- Fast delivery: 5-7 days
- Annual production capacity: 80,000 units
- Professional sales staff providing 7*24 hours service
As a professional gas detector manufacturer, we control the entire process from design and R&D through production and sales to ensure consistent product quality. We hold more than 100 independent intellectual property patents in design and development.
Our production features skilled technical workers and complete industrial lines, enabling full control over manufacturing and quality assurance throughout the process.
Our professional R&D department has approximately 25 years of experience in the gas detection industry, providing customers with professional technical support and after-sales service.
We implement a strict quality management system with a core principle of quality first. This commitment has earned us ISO9001 and ISO14001 certifications, ensuring safe and environmentally friendly products.
Our products hold IECEx and ATEX explosion-proof certifications, making them suitable for hazardous areas including mines, underground facilities, and oil plants. We are the first and currently the only manufacturer in China to obtain these certifications.
Core components, including ICs and sensors, utilize imported brands like Honeywell, CITY and Alpha, enhancing product accuracy, stabilizing service life, ensuring detection precision, and protecting customer safety.
Our complete product line and stable inventory ensure fast delivery. Orders under 10 units typically ship within 3 days, while quantities exceeding 100 units are delivered within half a month under normal circumstances.
Frequently Asked Questions
What is a gas detector?
A gas detector is an instrument for detecting gas leakage concentrations, including portable gas detectors and fixed gas detection systems.
What does a gas detector detect?
Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
What is the ppm unit of the gas detector?
PPM represents the volume concentration of gas, meaning the volume of pollutants contained in one million volumes of air. For example, an ammonia concentration of 30ppm indicates 30 volumes of ammonia in one million volumes of air.
