| Herkunftsort: | CHINA |
|---|---|
| Markenname: | SAFEGAS |
| Zertifizierung: | ATEX/EMC/IECEX |
| Modellnummer: | Micmeta |
| Min Bestellmenge: | 1 |
| Preis: | verhandelbar |
| Verpackung Informationen: | Karton (22*16*11 cm) |
| Lieferzeit: | 3 Arbeitstage |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | 3000 Stück pro Monat |
| Gastyp: | Sie können bis zu 5 Gase anpassen. | Arbeitsweise: | Diffusionsprobenahme |
|---|---|---|---|
| Antwortzeit (T90): | Weniger als 30 Sekunden | Kalibrierplattform: | Optionale Dockingstation zur täglichen Kalibrierung und Beule -Test |
| Batterie: | 3.7V Lithiumbatterie, wiederaufladbar | Drahtlose Übertragung: | Optional Bluetooth- oder Lora-Wireless-Sender |
| Arbeitszeit: | 24 Stunden | Ladezeit: | Weniger als 6 Stunden |
| Zertifizierung: | ATEX, CN, IECEX | Schutznote: | IP66/IP68 |
| Gewicht (mit Innenbatterie): | 240g | Datensatz: | 1000 Sätze |
| Ereignisrekord: | 100 Sets | ||
| Hervorheben: | 24 Hours Working Time Multi Gas Detector,1000 Sets Data Record Gas Detection Instrument,100 Sets Events Record Portable Gas Analyzer |
||

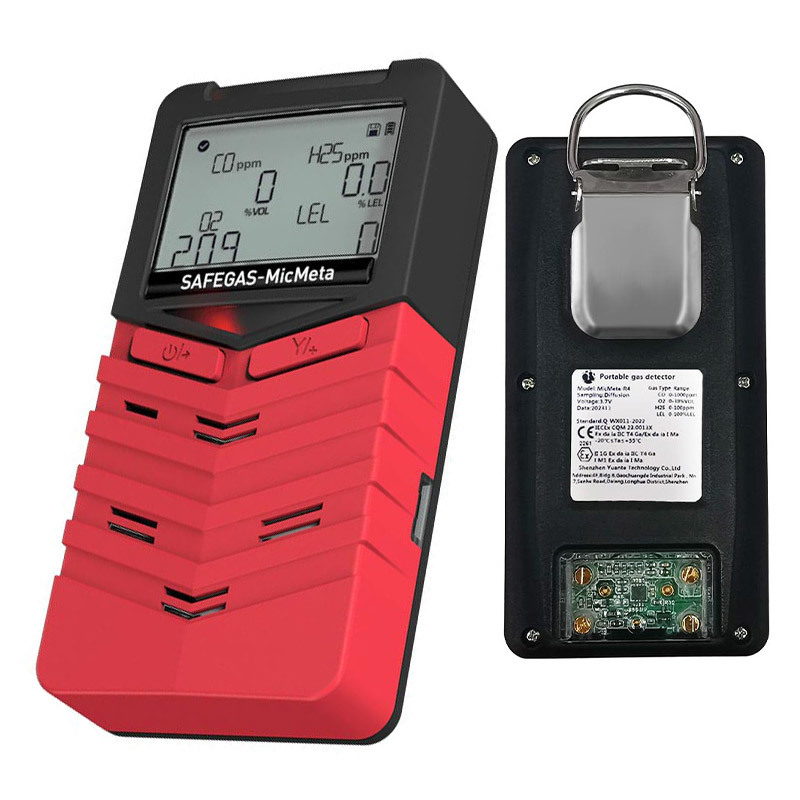

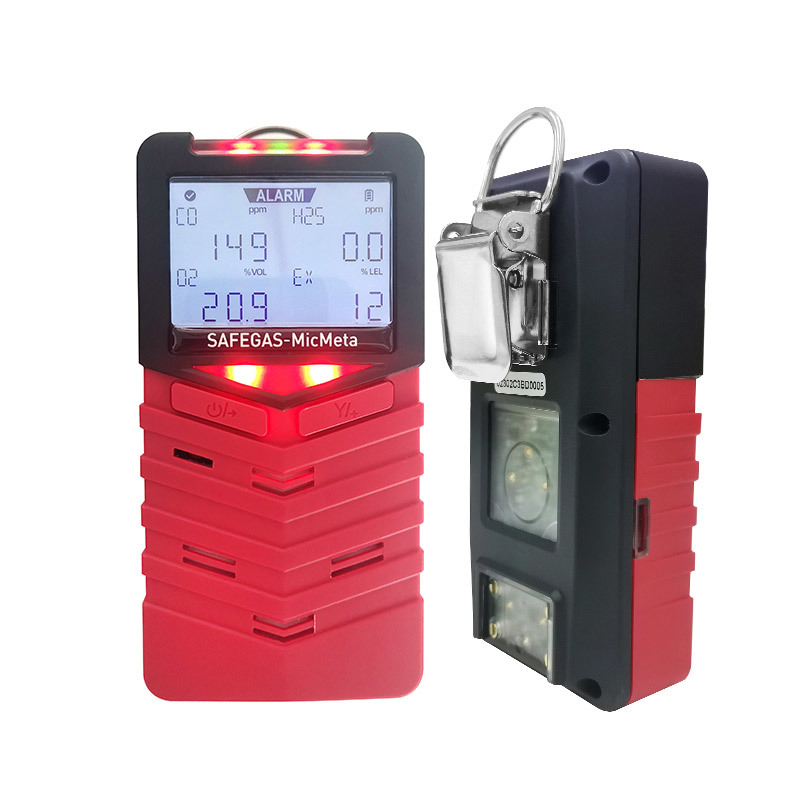

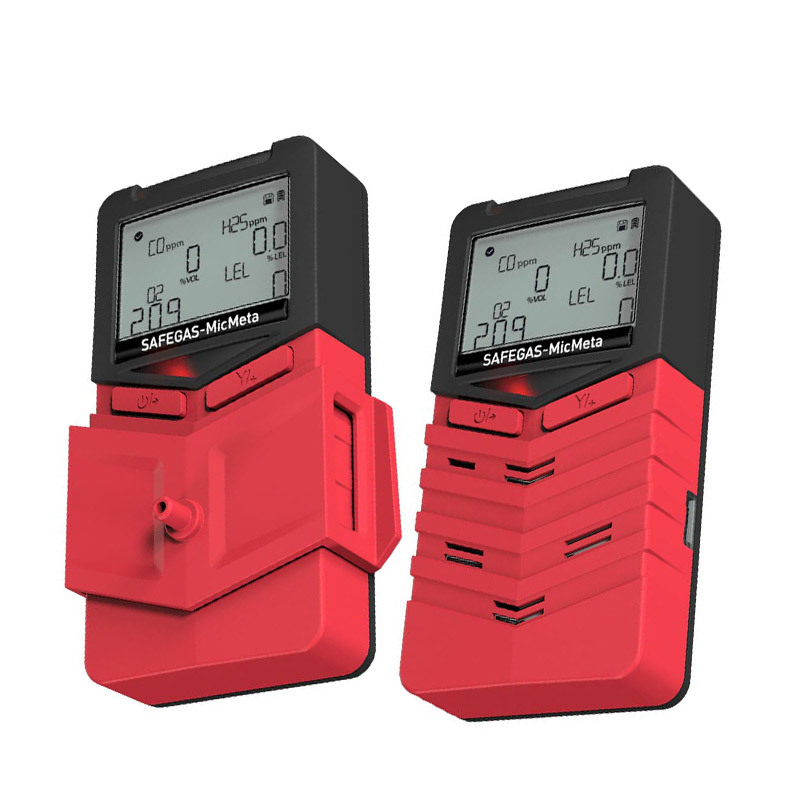

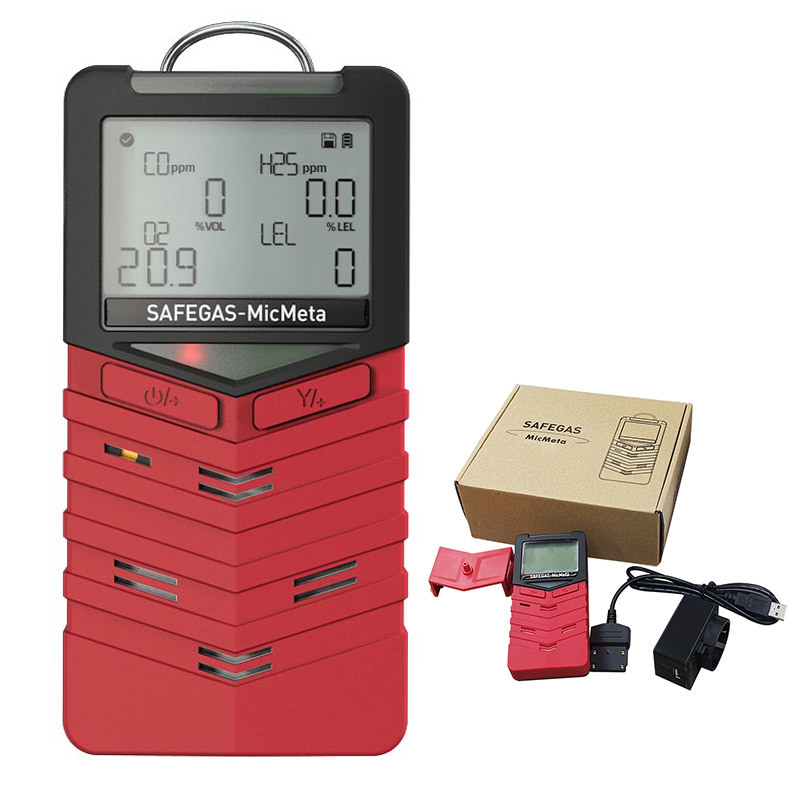

The Safegas Portable Multi Gas Detector is a lightweight, IECEX certified device with IP68 drop resistance featuring diffusion suction and a convenient back clip.
MicMeta is a multi-gas detector with IP66/IP68 protection that can detect 1-4 gases simultaneously. When configured for CO and H2S detection, it can monitor up to 5 gases concurrently.
This detector holds three explosion-proof certifications: IECEX, ATEX, and China Explosion-proof, with an explosion-proof level of Ex ia IICT4 Ga/Ex ia I Ma, making it suitable for use in Zone 0 and Zone 1 hazardous areas.
Features include an LCD screen with Chinese/English language support, two-level sound and light alarms with customizable settings, optional PC software for data download, and an optional docking station for simplified bump testing, calibration, configuration, and data recording.
| Specification | Details |
|---|---|
| Sampling Method | Diffusion suction |
| Gas Type | Customizable, detects up to 5 gases |
| Response Time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on sensor) |
| Display | Segment code LCD display |
| Alarm System | 95dB buzzer, vibration, flashing red bar, on-screen alarm status |
| Battery | 3.7V rechargeable lithium (2300mAh) |
| Working Time | 18h standby, <6h charging |
| Explosion-proof Grade | IECEx: Ex ia IIC T4 Ga, Ex ia I Ma ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma |
| Protection Grade | IP66/IP68 |
| Dimensions | 113*60*32mm (L*W*H) |
| Weight | 200g (with battery) |
