Portable Argon Gas Detector with 0-100%VOL Range, Thermal Conductance Sensor, and IP66 Protection for Industrial Safety

Grundlegende Informationen
Herkunftsort: China
Markenname: SAFEGAS
Zertifizierung: CNEX CCC ISO9001, ISO14001, ISO45001
Modellnummer: SKY2000
Min Bestellmenge: 1
Preis: verhandelbar
Verpackung Informationen: Karton
Lieferzeit: 3 Arbeitstage
Zahlungsbedingungen: T/T, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Stück pro Monat
Detailinformationen
Gas erkannt: AR Reichweite: 0–99,99 % Vol
Resolusion: 0,01%Vol Sensortyp: Wärmeleitfähigkeit
Ansprechzeit: 5s Wiederholbarkeit: ≤ ± 1%
HS -Code: 9027100090 Garantie: 1 Jahr
Gewicht: 300g Größe: 205*75*32
Schutzgrad: IP66

Produkt-Beschreibung

Gas Leak and Concentration Detector Argon Ar 0-100%VOL
SKY2000 Portable Ar Gas Detector

High-precision portable Ar Gas Detector with Pump-Suction detection principle, designed for industrial safety applications in semiconductor and industrial protection atmosphere environments.

Product Overview

SKY2000 series gas detector is a fast response and high accuracy gas measurement device. With internal sampling pump, fast sampling speed and high flow rate, ensuring quick response time. Unique design, small size and easy to carry. Special high intensity engineering plastics housing, suitable for different situations and environments.

Key Features
  • LCD dot matrix display with backlight function
  • Built-in sampling pump
  • Explosion-proof certified: Ex ia IIC T4 Ga
  • Span-calibration and zero calibration functions for accurate detection
  • One press factory setting restoration
Technical Specifications
Gas Detected Ar; other gases can be specified
Detection Principle Electrochemical
Measure Range 0-99.99%VOL
Resolution 0.01%VOL
Precision ≤ ± 1-5% F.S
Data Logging (Optional) 100,000 readings stored, downloadable via PC software
Response Time ≤30S
Repeatability ≤ ± 1%
Zero Shift ≤ ± 1% (F.S/year)
Operating Language Chinese/English
Temperature Range 20℃ ~ 50℃
Explosion-Proof Rating Ex ia IIC T4 Ga
Alarm Mode Sound, light, vibration
Dimensions 205*75*32mm
Recovery Time ≤10S
Linearity Error ≤ ± 1%
Display LCD dot matrix display
Gas Unit Switchable units
Humidity 0-90%RH
Degree of Protection IP66
Operating Time 100h (pump off)
Weight 300g
Product Images

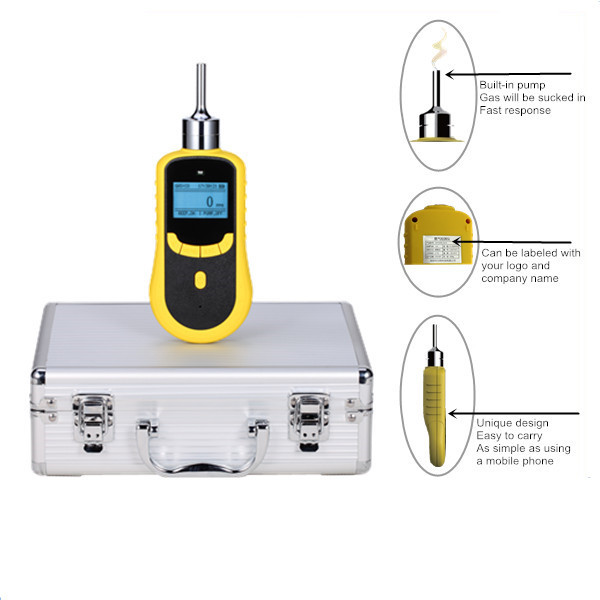

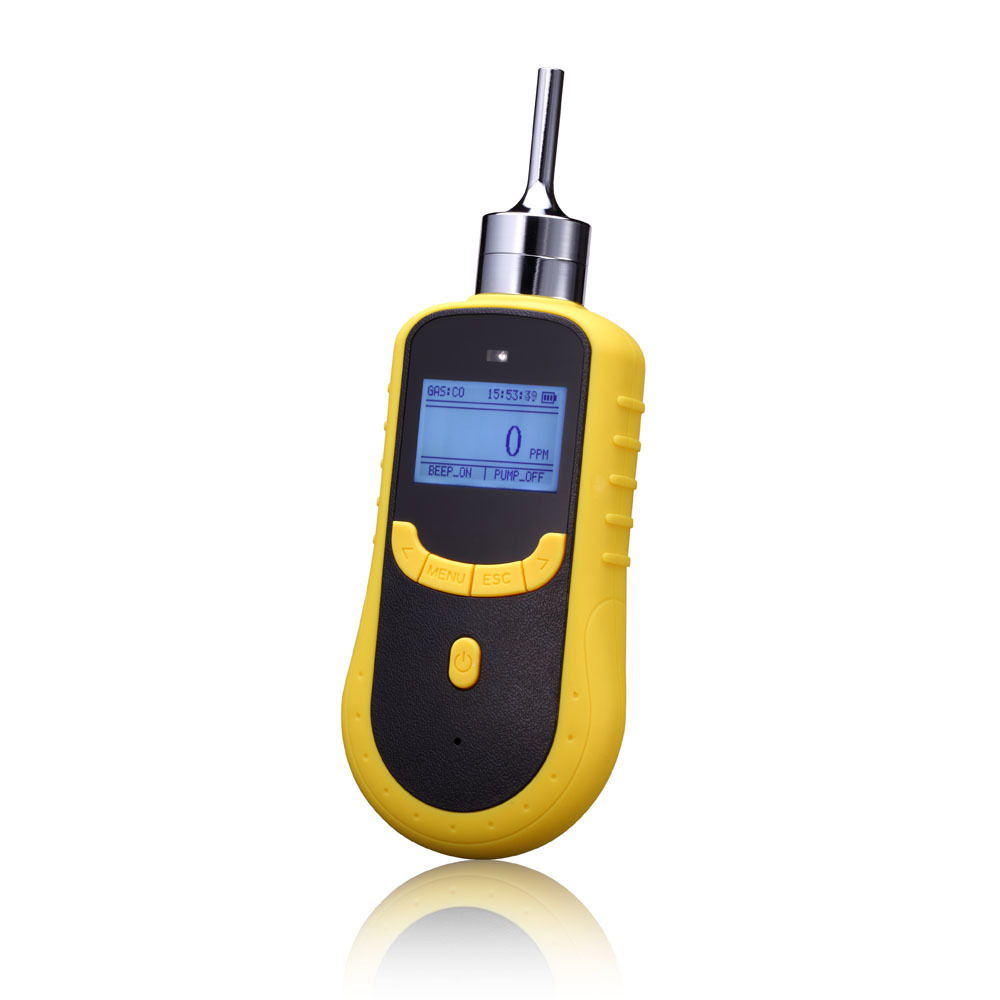

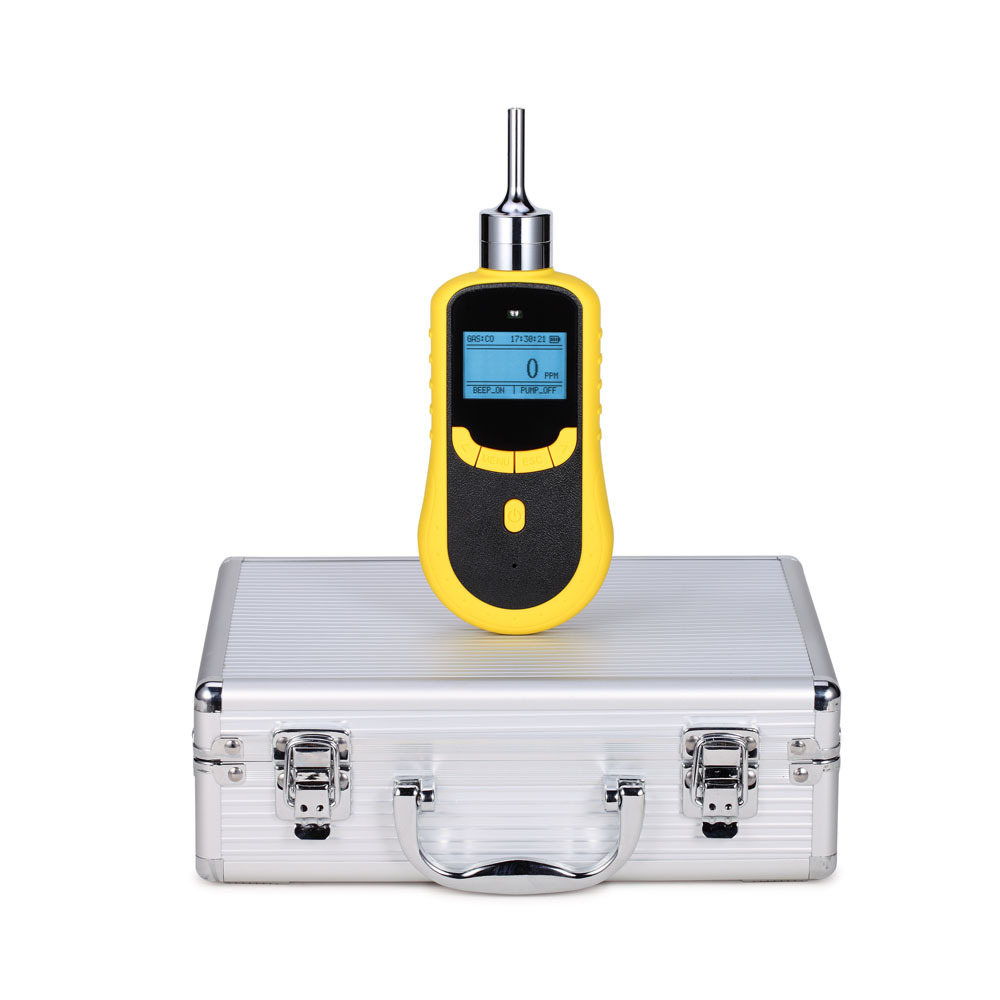

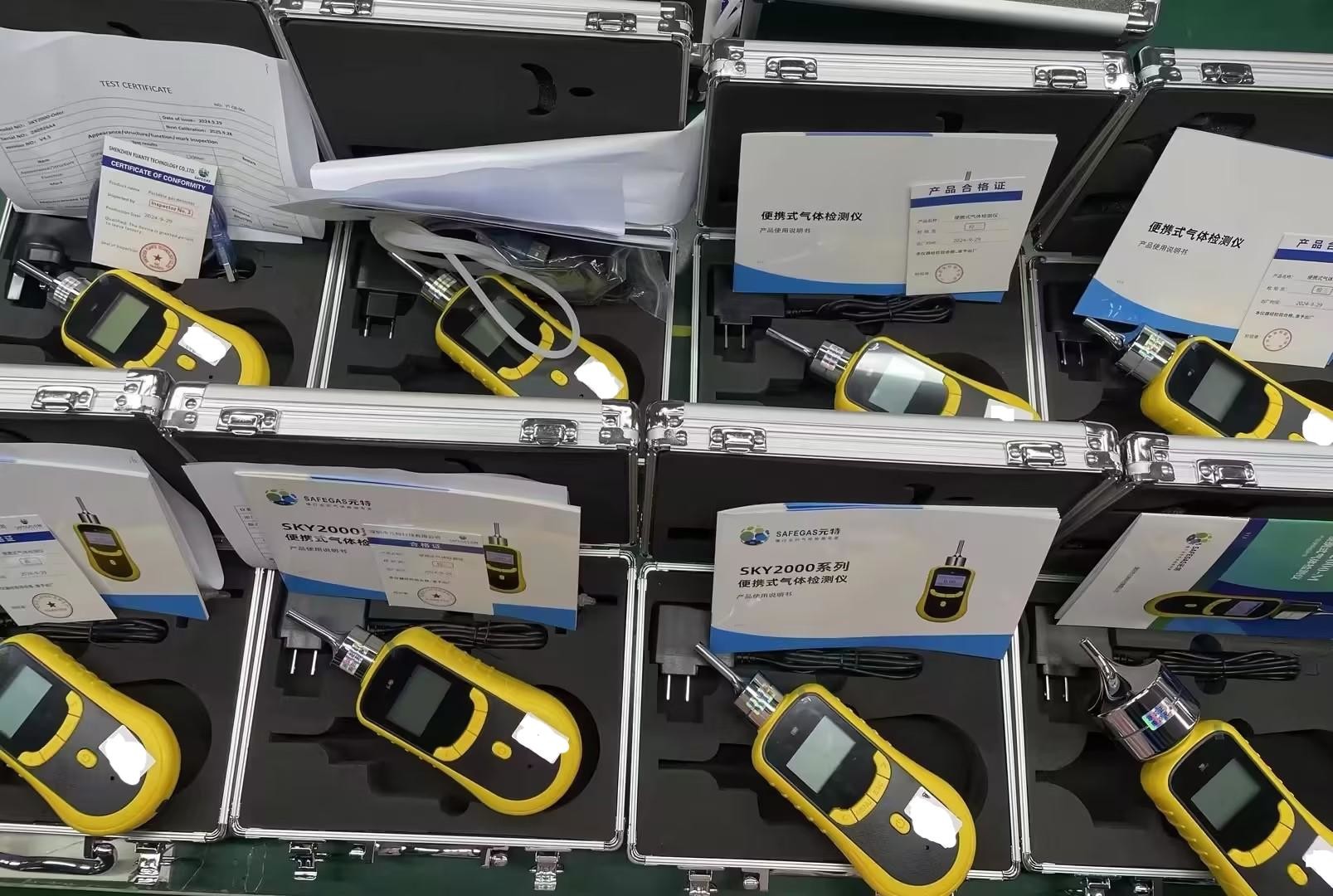

Portable Argon Gas Detector with 0-100%VOL Range, Thermal Conductance Sensor, and IP66 Protection for Industrial Safety 0 Portable Argon Gas Detector with 0-100%VOL Range, Thermal Conductance Sensor, and IP66 Protection for Industrial Safety 1 Portable Argon Gas Detector with 0-100%VOL Range, Thermal Conductance Sensor, and IP66 Protection for Industrial Safety 2 Portable Argon Gas Detector with 0-100%VOL Range, Thermal Conductance Sensor, and IP66 Protection for Industrial Safety 3
Company Advantages
  • R&D team experience: over 25 years
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx, ATEX, CE
  • Delivery time: 5-7 days
  • Annual capacity: 80,000 units
  • Professional 7*24 hours customer service
Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line
  • Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
  • Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
  • Controllers: YT-1100H, YT-1600H, YT-1800H
  • Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM
