Name: High-precision Fixed H2S Gas Detector with Explosion-proof Design and Electrochemical Sensor for Industrial Safety
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-95H
Price: 1,037.00 USD
Availability: InStock

Detailinformationen

Gas erkannt:	H2S	Reichweite:	0-100ppm
Resolusion:	0,1 ppm	Sensortyp:	Elektrochemisch
HS -Code:	9027100090	Abmessungen:	180 mm × 150 mm × 90 mm
Gewicht:	weniger als 1,6 kg	Explosionsgeschützte Ausführung:	Ex d IIC T6 GB
Anzeige:	LCD	Wiederholbarkeit:	≤ ± 1%
Null Schicht ((F.S./Jahr):	≤ ± 1%

Produkt-Beschreibung

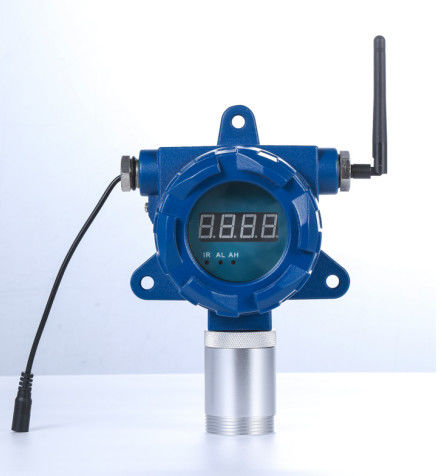

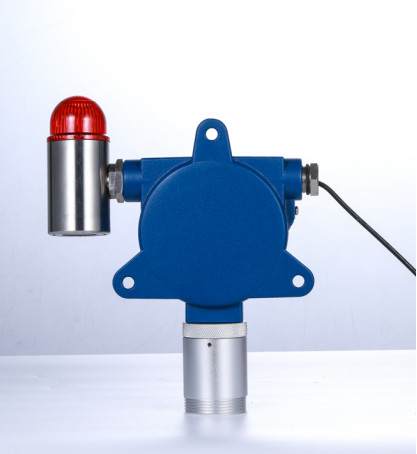

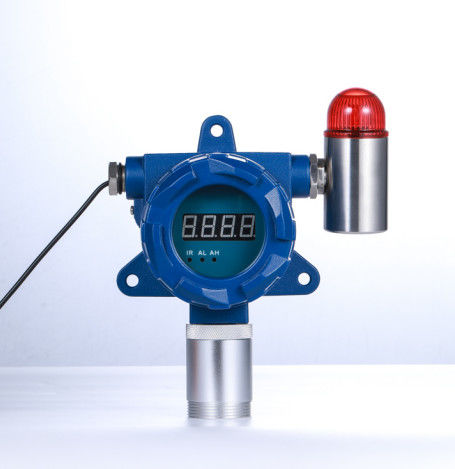

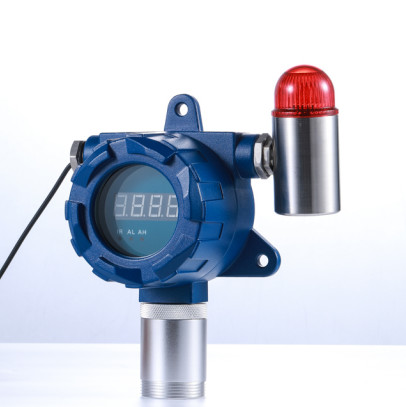

YT-95H-A Fixed H2S Hydrogen Sulfide Gas Detector

High-precision fixed H2S gas detector with diffusion detection principle, designed for industrial safety applications to protect workers from H2S leakage using smart industrial gas alarm system.

Product Overview

YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. Features a 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol, making it compatible with most control systems. Third-party products such as horns, warning lights and fans are compatible with our components and can be integrated into the system. With optional wireless function, operators can view data on laptop, mobile phone or cloud system remotely.

Key Features

Online monitoring with sound/light alarm (Optional): 24h continuous monitoring with real-time data display. High/low alarm with sound and light, sound >90dB, with settable alarm points
Non-contacted device control: Infrared ray controller for remote control of alarm point settings, zero calibration, and address modification
Variety of installation methods: 4-20mA current signal output compatible with different controllers. RS485 MODBUS signal output. Relay signal output to control ventilators, generators or other external devices
Data transmission: Compatible with PC software for data transmission to computer for remote monitoring. Wireless data transmission including Lora, 4G (Optional)
High quality case: Die-cast aluminum case, strong and durable. Stainless steel case optional. IP65 protection degree, water-proof, dust-proof, explosion-proof

Technical Specifications

Parameter	Details
Gas Detected	H2S
Detection Principle	Electrochemical
Measure Range	Specified according to application
Resolution	Specified according to application
Accuracy	≤±2-5%FS (depending on the specific sensor)
Response Time (T90)	15-30s (depending on the specific sensor)
Repeatability	≤±1%
Zero Shift	≤±1% (F.S./year)
Display	4 digits Nixie tube display
Connection Mode	G1/2 external thread explosion-proof flexible pipe
Thread Size	M45×2mm
Temperature	-20℃ ~ 50℃
Humidity	0-95%RH (no condensation)
Material Case	Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel
Power	12-36V DC
Dimensions	180×150×90mm
Weight	≤1.6kg
Explosion-proof Grade	Ex d IIC T6 Gb

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Portable Detectors

Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA

Fixed Systems

YT-95H, YT-98H, YT-96H, SG100, SG200

Controllers

YT-1100H, YT-1600H, YT-1800H

Particle Counter

AQD5000, SKY6000-PM, SKY2000-PM

Größe und Tag:

Herkunftsort:	China
Markenname:	SAFEGAS
Zertifizierung:	CNEX CE ISO9001, ISO14001, ISO45001
Modellnummer:	YT-95H

Min Bestellmenge:	1
Preis:	verhandelbar
Verpackung Informationen:	Karton
Lieferzeit:	3 Arbeitstage
Zahlungsbedingungen:	T/T, Western Union
Versorgungsmaterial-Fähigkeit:	1000 Stück pro Monat
