Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records

Grundlegende Informationen
Herkunftsort: China
Markenname: SAFEGAS
Zertifizierung: ATEX/EMC/IECEX
Modellnummer: Sky3000
Min Bestellmenge: 1
Preis: verhandelbar
Verpackung Informationen: Aluminiumkoffer
Lieferzeit: 3 Arbeitstage
Zahlungsbedingungen: T/T, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Stück pro Monat
Detailinformationen
Gas: CO Messbereich: 0-1000ppm
Auflösung: 1 ppm Sensortyp: Elektrochemisch
Stichprobenmethode: Pumpenansaugung Zertifizierung: CE,ATEX,IECEx,ISO
Sprache: Chinesisch/Englisch/Russisch/angepasst Alarmmodus: Buzzer, LED und Vibrationen
Leistung: Mit 3,7 V wiederaufladbarer Lithiumbatterie Arbeitsstunde: Mehr als 15 Stunden (mit laufender Pumpe)
Datensatz: Kann 100000 Sets Daten speichern Einzelpackungsgröße:: 34 cm*24 cm*14 cm
Einzelnes Bruttogewicht:: 1,64 kg Schutzgrad: IP67

Produkt-Beschreibung

Portable Carbon Monoxide Analyzer With Pump Sampling Industrial Safety Monitoring With ATEX And IECEX
Product Overview

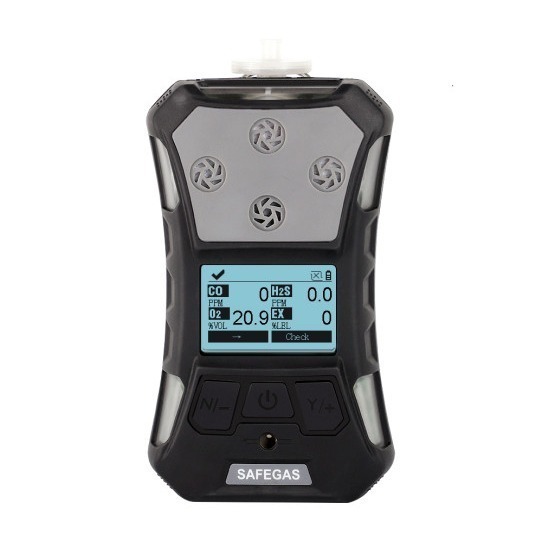

SKY3000 Portable Gas Detector - A high-performance portable gas detector capable of detecting multiple gases simultaneously with man down alarm function. Features international IECEX and ATEX explosion-proof certification with IP67 protection rating.

Technical Specifications
ParameterSpecification
Sampling methodPump suction
Gas typeSpecified according to application
Measure rangeSpecified according to application
ResolutionSpecified according to application
Response time≤10 seconds
Precision≤±1% F.S
LanguageEnglish (Other languages customizable)
Automatic functionsReset, maximum value (MAX), minimum value (MIN), STEL, TWA value
UnitPPM and mg/m³ switchable
DisplayMonochrome graphics (160 x 96), automatic screen flip
BacklightManually settable time, automatic on during alarm
Data record100,000 data sets, adjustable storage interval 5-3600 seconds, data exportable
Alarm95dB buzzer, vibration, flashing red LED, screen indication, diagnostic alarm, battery undervoltage, pump block, man down alarm with Bluetooth notification
Battery3.7V rechargeable lithium battery, 2200mA capacity
Working hoursMore than 15 hours continuous pumping
ChargerTravel charger with DC interface, ≥4 hours charging time
Explosion-proof gradeIECEX/ATEX (II IG Ex ia IIC T4), CNEX: Ex ia IIC T4 Ga
Certification (EU)2004/108/EC (EMC), 1995/5/EC (Radio), 94/9/EC (ATEX)
Protection gradeIP67/IP68
Working temperature-20ºC to +50ºC
Humidity0-90% RH (no condensation)
Environmental pressure86-106 Kpa
Size157 × 84.5 × 59.5mm (including accessories)
Weight365g (including battery and accessories)
Bluetooth function (Optional)Real-time data transmission to mobile phone or PC
Key Features
  • Multi-gas detection capability (Oxygen compounds VOC, combustible gas, toxic gas)
  • Man down alarm function for enhanced safety
  • One-key security detection and storage operations
  • Automatic image flipping and ergonomic design
  • Optional Bluetooth transmission for real-time data monitoring
  • International IECEX, ATEX explosion-proof certification
  • IP67 protection rating with antistatic testing
  • Automatic switch between suction and diffusion sampling methods
  • Compact, portable design for easy carrying

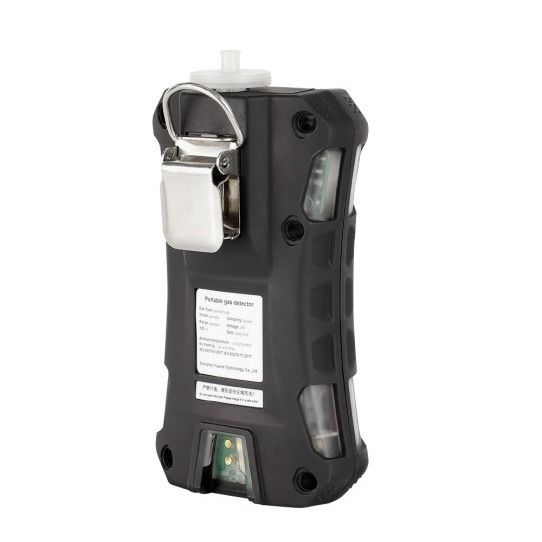

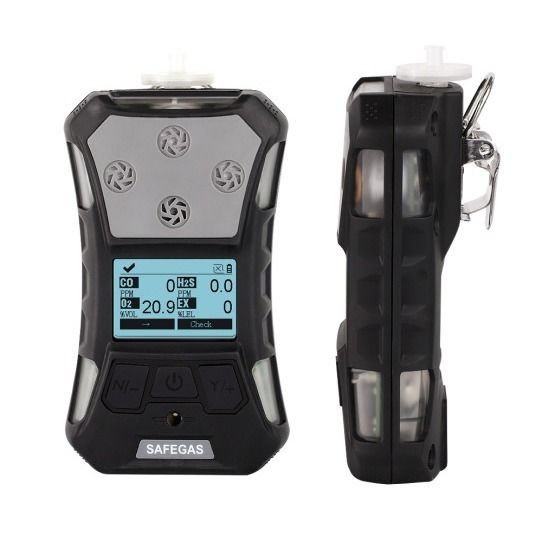

Product Images
Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 0Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 1Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 2Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 3Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 4Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 5
Applications

This device is widely used in various industrial fields:

  • ● Petrochemical & Chemical Industry
  • ● Municipal Engineering & Utilities
  • ● Agricultural & Environmental Protection
  • ● Electronic Industry
  • ● Food & Pharmaceutical Industry
Application Photos
Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 6Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 7Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 8Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 9Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 10
Standard Configuration
  • ● Gas detector - 1 piece
  • ● 12V/1A DC power adapter - 1 piece
  • ● USB cable - 1 piece
  • ● User manual - 1 piece
  • ● Warranty card - 1 piece
  • ● Filter - 1 piece

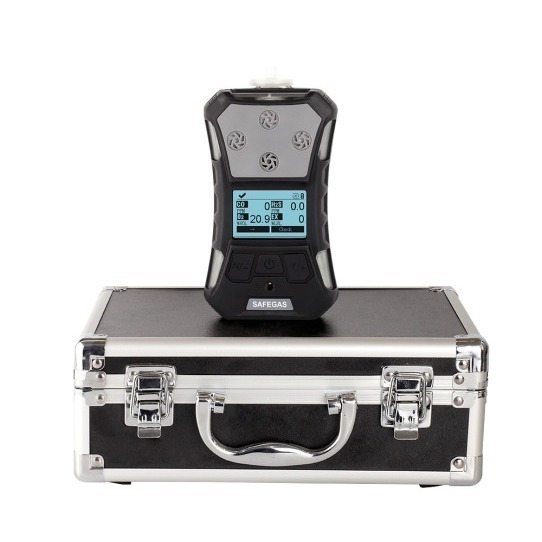

  • ● Aluminum suitcase - 1 piece
Why Choose Us?
  1. R&D team experience: over 25 years
  2. Company certification: ISO9001, ISO45001
  3. Product certification: IECEx (the only one in China), ATEX, CE
  4. Delivery: 5-7 days
  5. Yearly capacity: 80,000 units
  6. Service: Professional sales staff provide 7*24 hours service
Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for different industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Product Line

Our products include portable types, fixed types and controller panels:

  • Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
  • Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
  • Controller panels: YT-1100H, YT-1600H
Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 11
Certifications

Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality comparable to international brands with competitive pricing.

Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 12
Major Clients

We have successfully cooperated with major international companies including Huawei, Coca-Cola, Samsung, Nestlé and more.

Portable Carbon Monoxide Analyzer with Pump Suction ATEX IECEx Certified for Industrial Safety Monitoring with 100000 Data Records 13
