Portable HCL Gas Detector with 0-100PPM Range, Electrochemical Sensor, and IP65 Protection for Toxic Gas Monitoring

Grundlegende Informationen
Herkunftsort: China
Markenname: SAFEGAS
Zertifizierung: ISO CE CNEX
Modellnummer: Sky3000
Min Bestellmenge: 1
Preis: verhandelbar
Verpackung Informationen: Karton
Lieferzeit: 3 Arbeitstage
Zahlungsbedingungen: T/T, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Stück pro Monat
Detailinformationen
Gas: HCL Messbereich: 0-100ppm
Auflösung: 0,1 ppm Sensortyp: Elektrochemisch
Stichprobenmethode: Diffusion Material: ABS+Lederetui
Anzeige: Monochromes Punktmatrix-128*128-LCD-Grafikdisplay Alarmmodus: Ton, Licht und Vibration
Batterie: 3,7 V wiederaufladbarer Lithium-Akku mit einer Kapazität von 2500 mAh Einheit: ppm, mg/m3, %VOL, %UEG
Einzelpackungsgröße:: 131cm*83cm*35cm Gewicht:: 240g
Schutzgrad: IP65

Produkt-Beschreibung

Industrial Gas Analyzer HCL Detector With Diffusion Gas Detector Toxic Gas Concentration Monitoring
Product Overview

YT-1200H Portable HCL Gas Detector

The YT-1200H Portable Gas Detector is a high-precision, compact instrument designed for industrial safety applications. Utilizing diffusion detection principles, this multi-gas detector offers reliable monitoring of toxic gases, flammable gases, and oxygen levels in hazardous environments.

The YT-1200H series represents a mini-sized, cost-effective portable gas detector with high accuracy. Designed for ease of operation with comprehensive functionality, it features a back clip and silicone protective case, making it suitable for various industrial situations.

Key Features
  • Standard event logging with 100 records viewable directly on device
  • Smart, lightweight design for comfortable wearing
  • LCD dot matrix display for clear visibility
  • One-button factory reset functionality
  • Ultra-high buzzer alarm with sound, light, and vibration alerts
  • Optional data logging with PC export capability
  • Large capacity rechargeable battery for extended operation
  • Integrated alligator clip for convenient portability
  • Durable ABS housing with comfortable tactile finish
Technical Specifications
Parameter Value
Gas Detected Specified according to application
Detection Principle Diffusion
Sensor Type Specified according to application
Measuring Range Specified according to application
Resolution Specified according to application
Precision <1-5% F.S.
Display Monochrome dot matrix 128×128 LCD graphic display
Backlight Settable time; auto-on during alarm
Data Logging Optional: 100,000 readings (10-3600 sec interval)
Event Logging 100 event records (standard, viewable on device)
Language Chinese / English
Alarm Type Sound, light, vibration
Battery 3.7V rechargeable lithium battery, 2500mAh
Working Time 14h continuous (4 gases); 200h (without LEL sensor)
Charger Travel charger; charging time 4-6h
Explosion-Proof Grade Ex ia IIC T4
Protection Grade IP65
Working Temperature 10°C - 50°C
Working Humidity 15 - 95% RH
Housing Material ABS + leather case
Dimensions (L × W × H) 131 × 83 × 35 mm
Weight 240g
Product Images

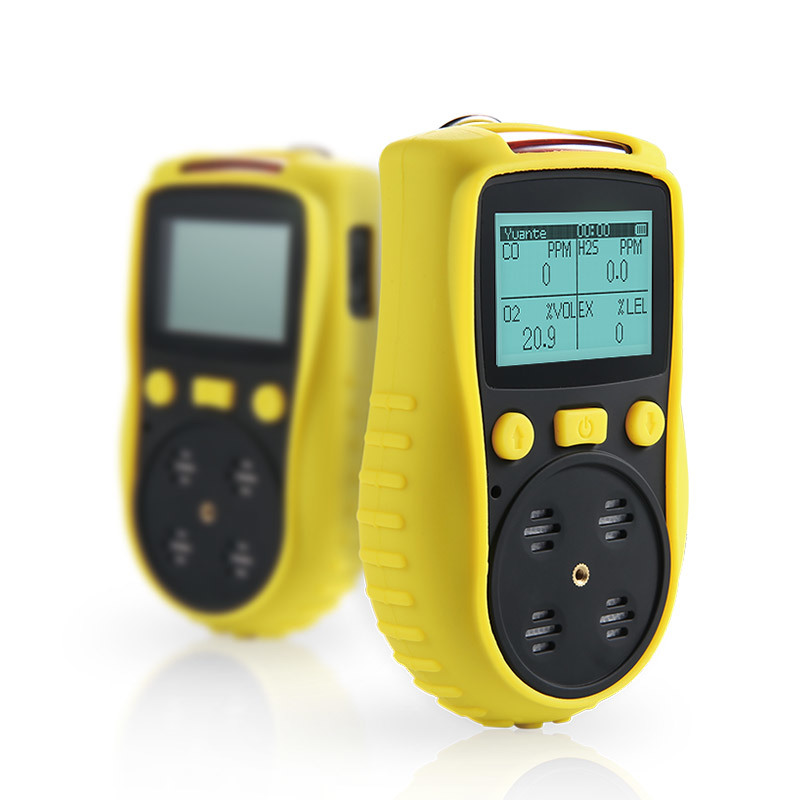

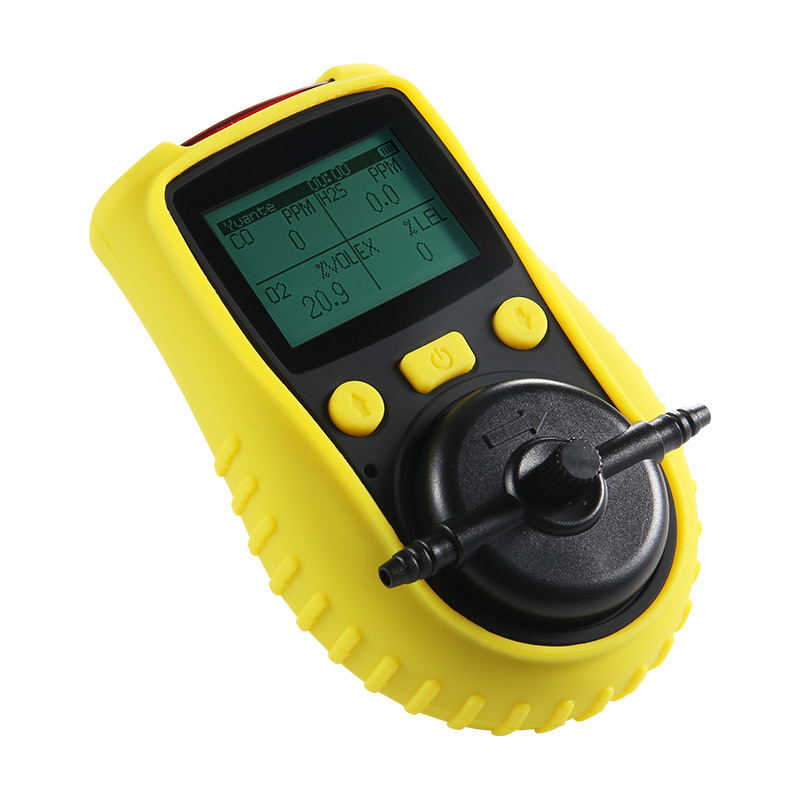

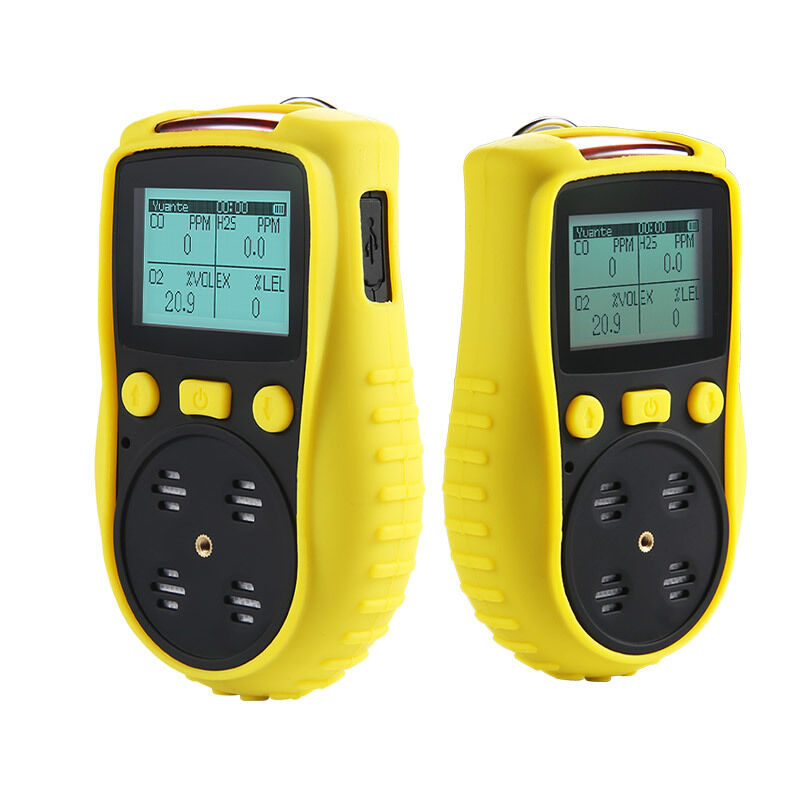

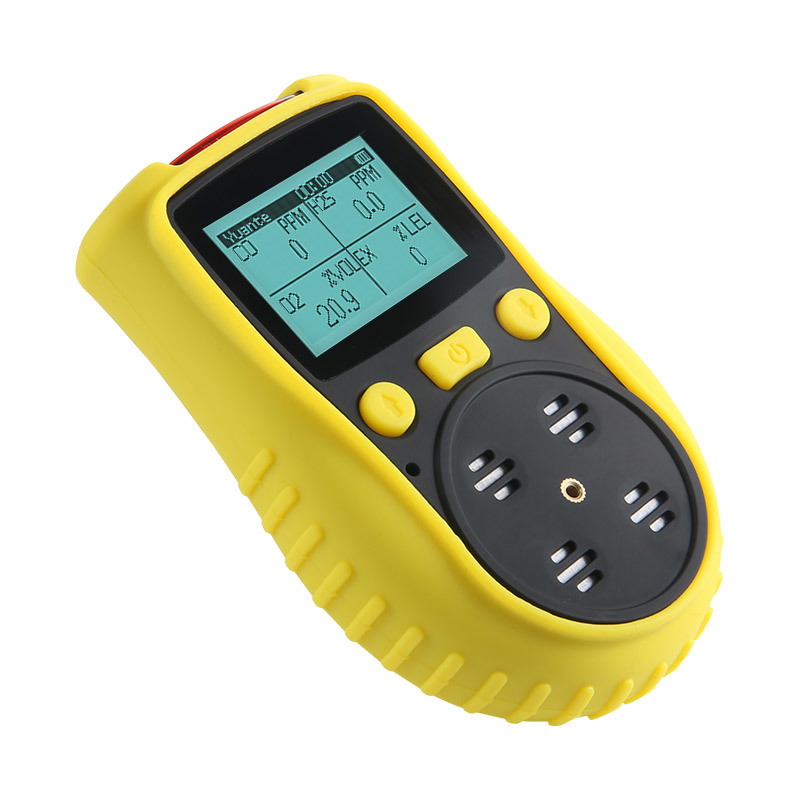

Portable HCL Gas Detector with 0-100PPM Range, Electrochemical Sensor, and IP65 Protection for Toxic Gas Monitoring 0
Portable HCL Gas Detector with 0-100PPM Range, Electrochemical Sensor, and IP65 Protection for Toxic Gas Monitoring 1
Portable HCL Gas Detector with 0-100PPM Range, Electrochemical Sensor, and IP65 Protection for Toxic Gas Monitoring 2
Portable HCL Gas Detector with 0-100PPM Range, Electrochemical Sensor, and IP65 Protection for Toxic Gas Monitoring 3
Portable HCL Gas Detector with 0-100PPM Range, Electrochemical Sensor, and IP65 Protection for Toxic Gas Monitoring 4
Portable HCL Gas Detector with 0-100PPM Range, Electrochemical Sensor, and IP65 Protection for Toxic Gas Monitoring 5
Portable HCL Gas Detector with 0-100PPM Range, Electrochemical Sensor, and IP65 Protection for Toxic Gas Monitoring 6
Company Advantages
R&D Team Experience: Over 25 years
Company Certifications: ISO9001, ISO45001
Product Certifications: IECEx, ATEX, CE
Delivery Time: 5-7 days
Annual Capacity: 80,000 units
Customer Service: Professional 7*24 hours support
Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line
Portable Detectors:

Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA

Fixed Systems:

YT-95H, YT-98H, YT-96H, SG100, SG200

Controllers:

YT-1100H, YT-1600H, YT-1800H

Particle Counters:

AQD5000, SKY6000-PM, SKY2000-PM

Portable HCL Gas Detector with 0-100PPM Range, Electrochemical Sensor, and IP65 Protection for Toxic Gas Monitoring 7
