High Precision Air Quality Monitoring Station with Electrochemical PID Gas Sensor and Cloud Platform Remote Control

High Precision Air Quality Monitoring Station with Electrochemical PID Gas Sensor and Cloud Platform Remote Control
High Precision Air Quality Monitoring Station with Electrochemical PID Gas Sensor and Cloud Platform Remote Control
High Precision Air Quality Monitoring Station with Electrochemical PID Gas Sensor and Cloud Platform Remote Control High Precision Air Quality Monitoring Station with Electrochemical PID Gas Sensor and Cloud Platform Remote Control High Precision Air Quality Monitoring Station with Electrochemical PID Gas Sensor and Cloud Platform Remote Control High Precision Air Quality Monitoring Station with Electrochemical PID Gas Sensor and Cloud Platform Remote Control
Grundlegende Informationen
Herkunftsort: China
Markenname: SAFEGAS
Zertifizierung: CEP
Modellnummer: AQD5000
Min Bestellmenge: 1
Preis: Negotiate
Verpackung Informationen: Karton
Lieferzeit: 10 Arbeitstage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 300 Stück pro Monat
Bestpreis Kontakt
Detailinformationen
Signalausgang: RS485、Relee、4G DTU (optional)、LORA (optional) usw. Pumpen-Strömungsgeschwindigkeit: 0.5 L/min für Gas; 1,8 L/min für Partikel und Staub
Anzeigemodus: Adaptive Anzeigekanalnummer, automatische Seitenschaltung Betriebstemperatur: -10℃~55℃
Stichprobenmethode: Pumpenansaugung Arbeitsfeuchtigkeit: 0-95% RH (relative Luftfeuchtigkeit)
Überwachungsmethode: Kontinuierliche automatische Echtzeitüberwachung Alarmtyp (optional): Schall- und Lichtalarm
Produktgewicht: 18kg Bildschirm anzeigen: Farb-Touch-Bildschirm, 7 Zoll

Produkt-Beschreibung

High Precision Outdoor Air Quality Monitoring Station
Product Overview

ADQ5000 is a new type of low-cost intelligent monitoring equipment, ideal for environmental monitoring departments to monitor air quality. The AQD5000 air quality monitoring system is widely used in urban air quality monitoring and industrial air emission pollution monitoring.

This system can simultaneously measure various environmental pollution gases, particulate matter and meteorological parameters. It supports RS485 signal transmission with data storage and export functions. Through wireless acquisition terminals, measurement data can be transmitted to cloud platforms in real time and remotely controlled.

  • Urban municipal ambient atmospheric environmental quality real-time monitoring
  • Industrial factory waste gas emission & workshop air pollution monitoring
  • Chemical plant, mining area, industrial park air pollutant concentration detection
  • Residential community, scenic spot, campus public area air quality supervision
  • Construction site dust concentration and meteorological environmental parameter monitoring
  • Environmental protection bureau regional atmospheric pollution grid monitoring & data recording
Product Images

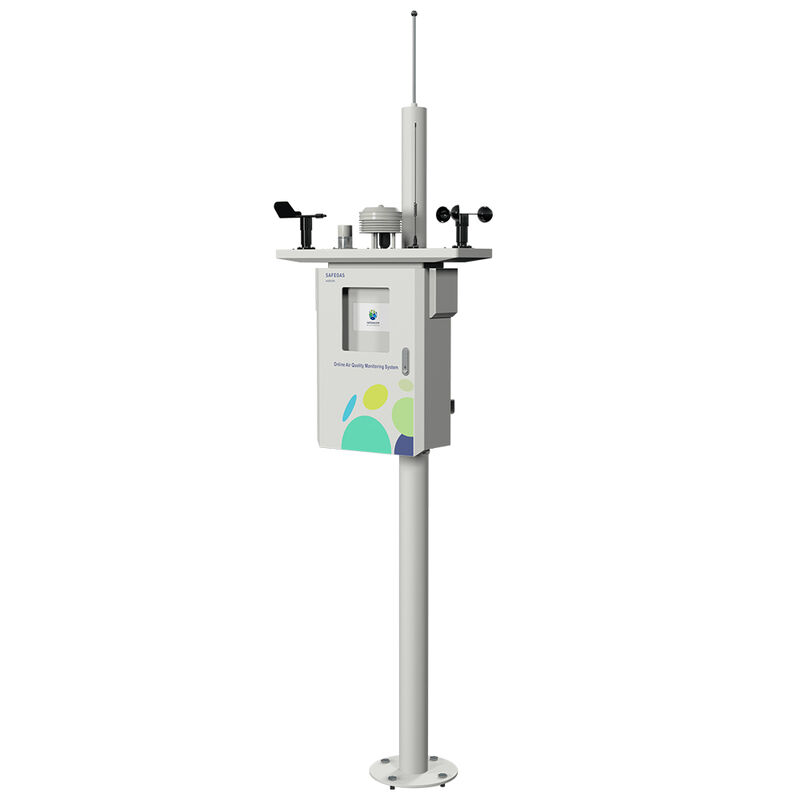

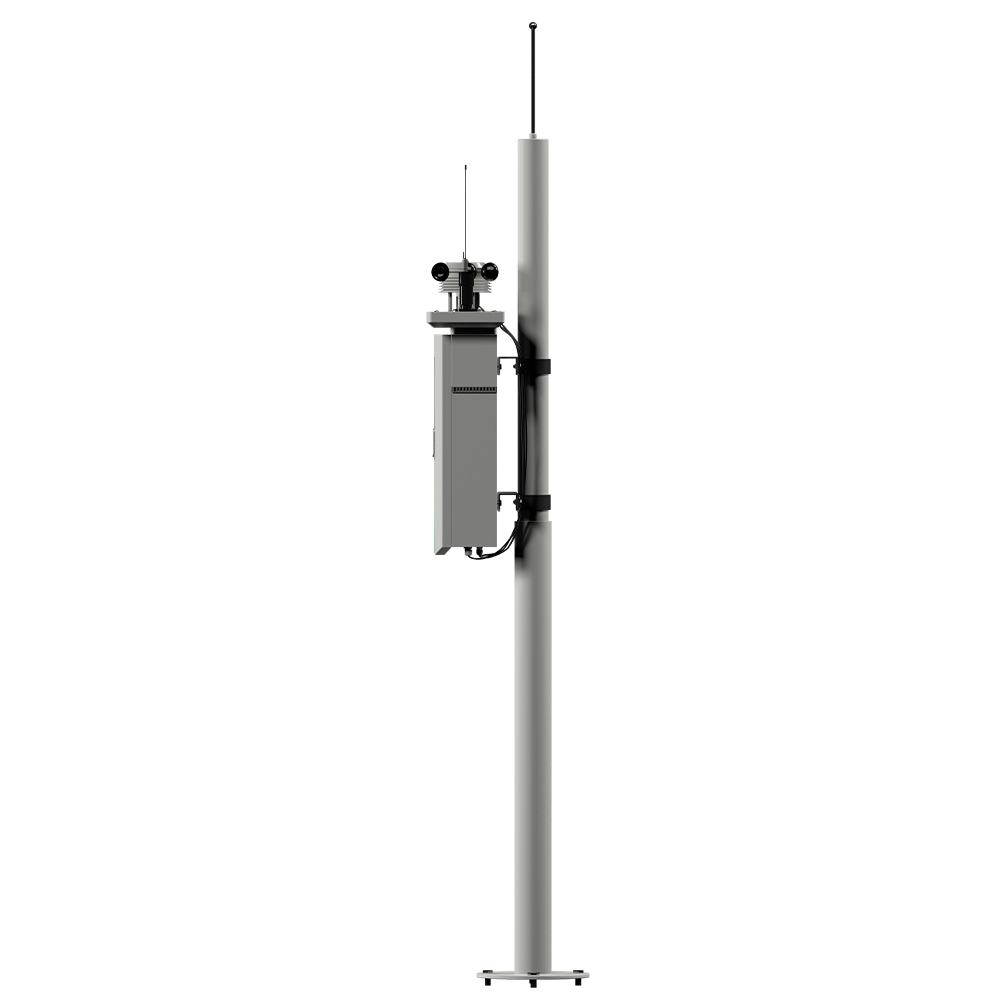

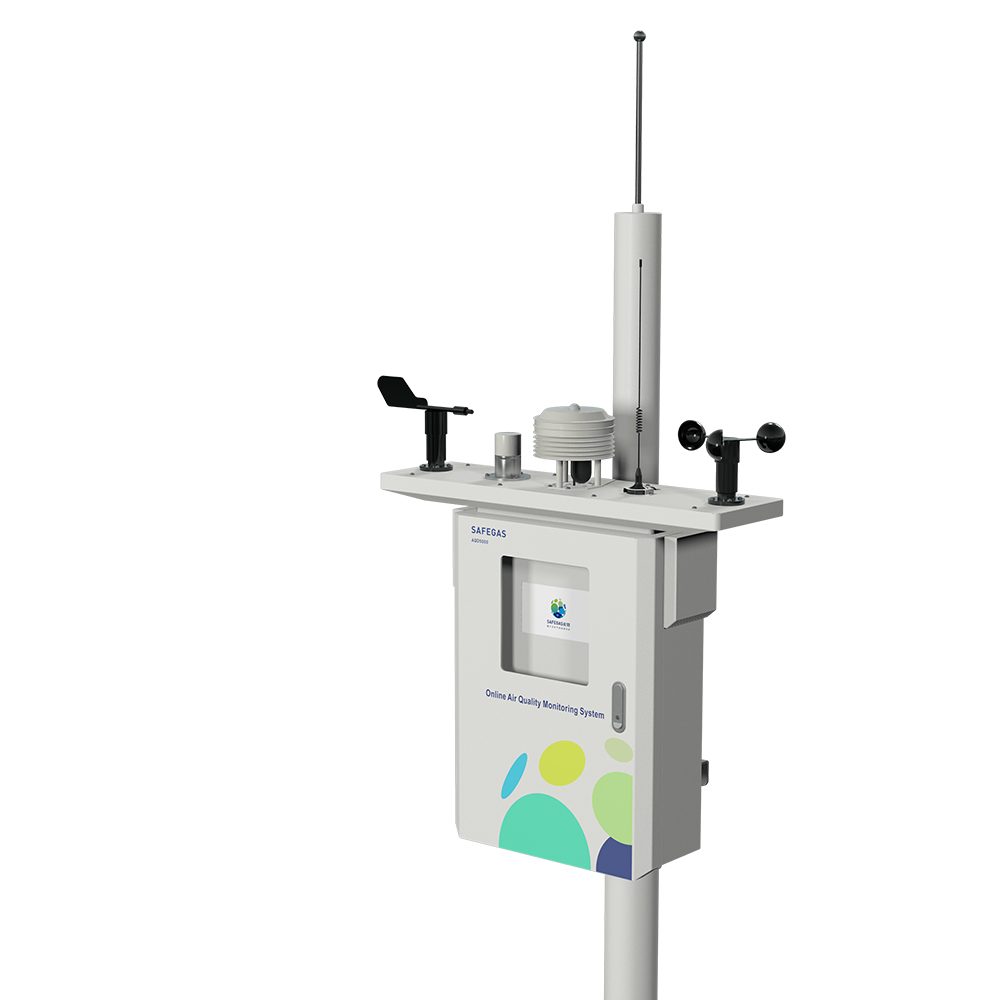

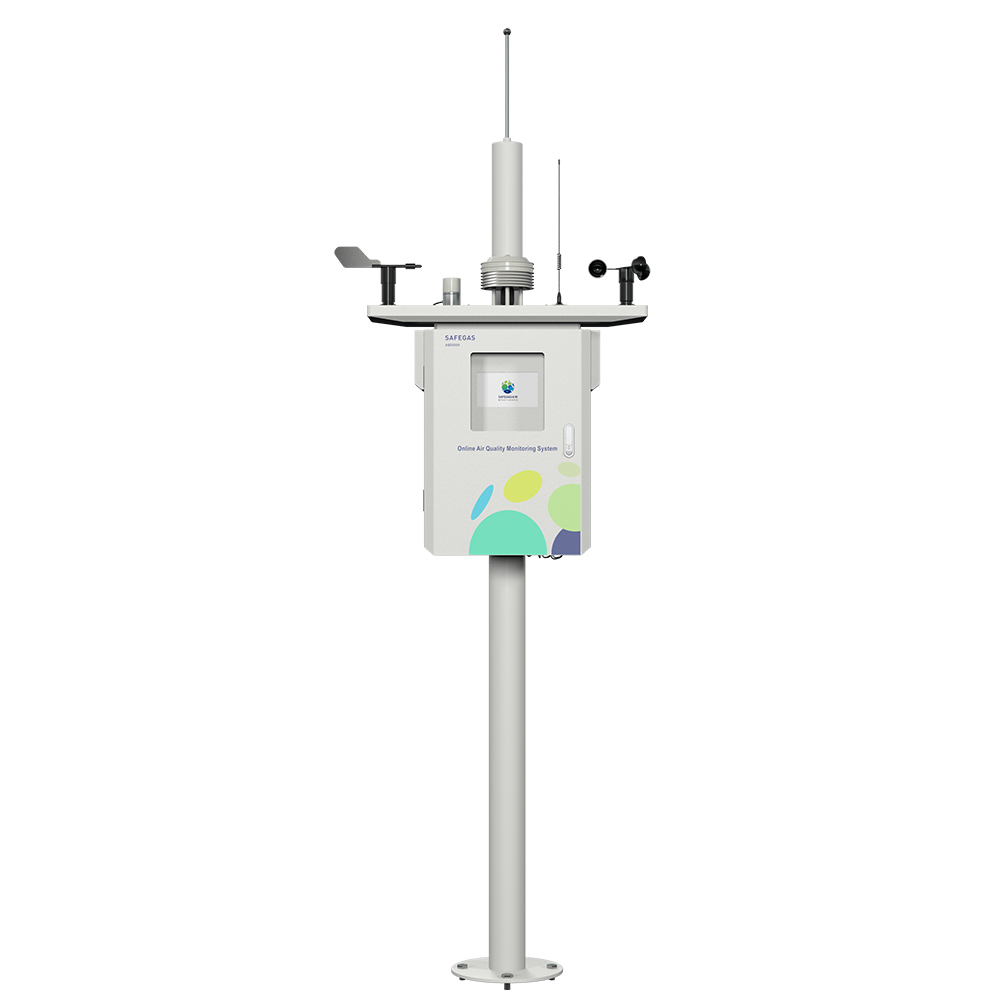

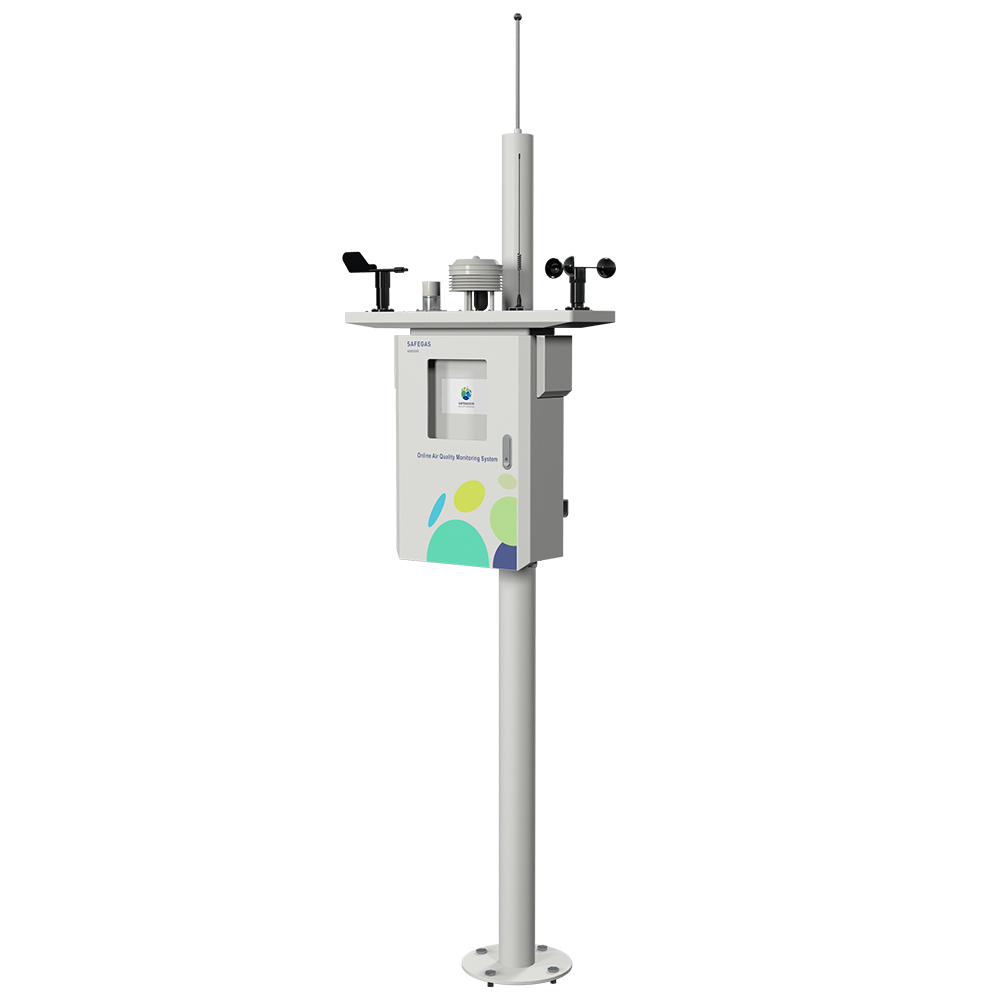

ADQ5000 Air Quality Monitoring Station exterior view ADQ5000 monitoring station installation example Close-up of ADQ5000 sensor components ADQ5000 display interface and controls ADQ5000 outdoor installation with weather protection ADQ5000 industrial application setup
Product Advantages
Multi-Module Monitoring

1-9 gas parameters simultaneously, with optional particle and meteorological parameter modules

High Protection Rating

Professional outdoor shield for dust/rain protection, stable operation in extreme temperatures

Extended Data Logging

Standard storage function for at least two years of monitoring data

Continuous Operation

24/7 uninterrupted operation with real-time data upload and self-diagnosis

Standard Connectivity

RS485 signal output with relay signal support

High Accuracy & Reliability

15 years gas detection expertise, world-class sensors, third-party verified results

Optional Features
  • Outdoor LED display large screen for real-time data viewing
  • Solar power supply panel for operation without mains power
  • Adapter card and PC software for computer-based monitoring
  • 4G DTU and Lora wireless modules for real-time data upload
  • Camera integration for remote visual monitoring and image collection
Technical Specifications
Gas Parameters Measurement: Ozone, sulfur dioxide, nitrogen dioxide, formaldehyde, carbon monoxide, TVOC
Range: 0-1000ppb, 0-1000ppb, 0-1000ppb, 0-5ppm, 0-20ppm, 0-5ppm
Resolution: 1 ppb, 1 ppb, 1 ppb, 0.01ppm, 0.001ppm, 0.001ppm
Principle: Electrochemical, infrared, PID photo ionization
Accuracy: ±3% FS
Response Time: ≤30S
Particle Parameters Measurement: PM2.5, PM10, PM0.3, PM1.0, PM10.0, TSP
Range: 0-1000ug/m³, 0-5000ug/m³
Resolution: 1ug/m³
Principle: Laser principle
Response Time: ≤30S
Meteorological Parameters Measurement: Temperature, humidity, wind speed, wind direction, air pressure, light intensity, noise
Range: -40°C~+120°C, 0~99%RH, 0~20m/s, 8 directions, 0~120Kpa, 0~200,000 Lux, 30dB~130dB
Resolution: 0.1℃, 1%RH, 0.1 m/s, 1 piece, 1 Kpa, 1Lux, 1dB
Principle: Thermocouple, mechanical
Output Signal RS485, relay, 4G DTU (optional), LORA (optional)
Sampling Method Pump suction
Pump Flow Rate 0.5L/min (gas); 1.8L/min (particles/dust)
Display 7-inch color touch screen
Power Supply 220VAC, 0.1A
Working Current <100mA (Max)
Operating Temperature -10℃~55℃
Operating Humidity 0-95%RH (non-condensing)
Alarm Type Sound and light alarm (optional)
Product Shell Anti-corrosion, sun protection, anti-collision
Product Size 480×580×163mm (excluding external sensors and mounting brackets)
Installation Ceiling, wall-mounted
Product Weight 18kg
Warranty 12 months
System Capabilities

AQD5000 is an online air quality and environmental monitoring system designed for comprehensive environmental assessment.

  • Multi-gas Environmental Monitoring: Simultaneous detection of multiple pollutants
  • Particle & Dust Monitoring: Comprehensive particulate matter analysis
  • Weather/Environment Data: Complete meteorological parameter tracking
Applications
  • Urban air quality monitoring and trend analysis
  • Grid monitoring by environmental management departments
  • Air quality monitoring in densely populated areas
  • Industrial area atmospheric monitoring
  • Urban infrastructure monitoring (roads, airports, construction sites)
  • Open space environmental assessment
  • Emission monitoring of pollution sources
  • Environmental quality evaluation programs
Why Choose Us?
Complete Process Control

Full control from design to production with over 100 independent patents and 7×24h customer service

Expert R&D Team

25 years of gas detection industry experience with professional technical support

Quality Certifications

ISO9001 and ISO14001 certified with strict quality management systems

Safety Compliance

IECEx and ATEX explosion-proof certified for hazardous area applications

Premium Components

Imported sensors and ICs for enhanced accuracy and extended service life

Fast Delivery

3-day delivery for orders under 10 pieces, 15 days for orders over 100 pieces

Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for more than 10 years.
What is the minimum order quantity?
Usually 1 piece.
How about the quality of your products?
Our products use imported sensors and components and are fully certified.
How long is the warranty period?
1-year warranty from factory date with lifetime maintenance support.
