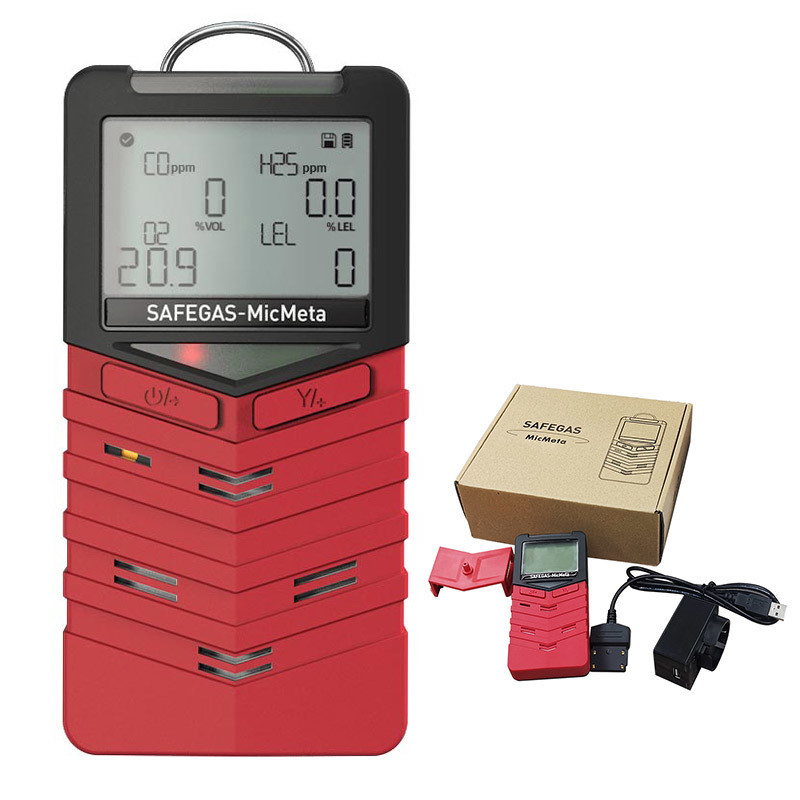

Long Standby Wearable Gas Detector For Volatile Organic Gas And Carbon Dioxide Ambient Monitoring
Product Overview
Portable multi model VOC CO2 gas detector with bump test and calibration
MicMeta is a multi-gas detector that has been certified by IECEx, ATEX, and EMC. It's lightweight and compact with standard gas type support for multi 4 (CO H2S O2 LEL) gases and hundreds of selectable gases. Features include standard mandown alarm, data logging function, and optional Lora and Bluetooth wireless data transmission for easy data access.
Product Specifications
| Specification |
Details |
| Sampling method |
Diffusion |
| Gas type |
VOC CO2 |
| Measure range |
Specified according to application |
| Resolution |
Specified according to application |
| Response time |
≤60S (T90) |
| Precision |
≤±5%FS or ±10% (depends on the specific sensor) |
| Language |
Chinese/English |
| Automatically test and calibrate after power-on |
Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit |
PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display |
Segment code LCD display |
| Calibration platform |
Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record |
1000 sets data records and 100 sets events records |
| Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery |
3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours |
Standby time 18h, charging time <6h |
| Wireless transmission |
Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade |
CNEX:Ex ia IIC T4 Ga |
| (EU regulations) |
2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade |
IP66/IP68 |
| Working temperature |
-20°C~55°C |
| Humidity |
0-95%RH (non-condensing) |
| Environmental pressure |
86~106Kpa |
| Size |
113*60*32mm (length * width * height) |
| Weight |
200g (with lithium battery) |
Applications
- Furniture manufacturing workshop volatile gas concentration safety testing
- Factory closed workshop carbon dioxide accumulation early warning
- Indoor renovation site harmful volatile pollutant regular inspection
- Food fermentation workshop ambient gas real time monitoring
- Paint warehouse VOC leakage and air circulation safety detection
- Commercial office indoor air quality compliance patrol testing
- And many more applications...
Product Advantages
IP66/IP68 water & dust resistant and 1.5 meters drop resistant case, rugged and durable designs
Compact, lightweight, small size with back clip, ergonomic and wearable design
Standard man down alarm, password protection, ID identification function
Real time value, TWA, STEL, MAX, MIN multiple numerical display
With self-test function, which can improve safety by automatic self-test
Standard 1000 data records and 100 events records
Support firmware upgrade remotely
With docking station to perform daily bump test and calibration (Optional)
Wireless data transmission including Lora, Bluetooth (Optional)
Low power consumption, battery run time is upto 24 hours per charge
