Rechargeable NO NO2 Gas Detector with Data Logging and IP66/IP68 Protection for Factory Exhaust Monitoring

Rechargeable NO NO2 Gas Detector with Data Logging and IP66/IP68 Protection for Factory Exhaust Monitoring
Rechargeable NO NO2 Gas Detector with Data Logging and IP66/IP68 Protection for Factory Exhaust Monitoring
Rechargeable NO NO2 Gas Detector with Data Logging and IP66/IP68 Protection for Factory Exhaust Monitoring Rechargeable NO NO2 Gas Detector with Data Logging and IP66/IP68 Protection for Factory Exhaust Monitoring Rechargeable NO NO2 Gas Detector with Data Logging and IP66/IP68 Protection for Factory Exhaust Monitoring Rechargeable NO NO2 Gas Detector with Data Logging and IP66/IP68 Protection for Factory Exhaust Monitoring
Grundlegende Informationen
Herkunftsort: CHINA
Markenname: SAFEGAS
Zertifizierung: ATEX/EMC/IECEX
Modellnummer: Micmeta
Min Bestellmenge: 1
Preis: verhandelbar
Verpackung Informationen: Karton (22*16*11 cm)
Lieferzeit: 3 Arbeitstage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 3000 Stück pro Monat
Bestpreis Kontakt
Detailinformationen
Arbeitszeit: Standbyzeit 24h, Ladezeit < 6h Arbeitsweise: Diffusion
Zertifizierung (EU-Vorschriften): Richtlinie 95/46/EG des Europäischen Parlaments und des Rates Kalibrierplattform: Änderungen, Funktionsprüfungen und Kalibrierungsvorgänge können auf der DKM-MicMeta-Dockingstation d
Drahtlose Übertragung: Bluetooth-Übertragungsfunktion (optional), Lora-Übertragungsfunktion (optional) Resolusion: Je nach Anwendung spezifiziert
Reichweite: Je nach Anwendung spezifiziert Batterie: 3.7V wiederaufladbare Lithiumbatterie, Batteriekapazität 2300mA
Antwortzeit (T90): ≤30s Schutzgrad: IP66/IP68
Automatische Prüfung und Kalibrierung nach dem Einschalten: Einschließlich automatischer Prüfung, Kalibrierung, automatischer Null, Höchstwert (MAX), Mindestwer Gas erkannt: KEIN NO2
Gewicht: 240 g (mit Lithiumbatterie) Datensatz: 1000 Sätze Datensätze und 100 Sätze Ereignisdatensätze

Produkt-Beschreibung

Rechargeable Concentration Monitor With Data Logging For Factory Exhaust NO NO2 Emission Patrol Gas Detector
Product Overview
MicMeta is a certified multi-gas detector featuring IECEx, ATEX, and EMC certifications. Compact and lightweight, it supports multiple gas types including standard 4-gas (CO, H2S, O2, LEL) and hundreds of selectable gases. Includes standard man-down alarm, data logging, and optional wireless data transmission via Lora and Bluetooth.
Product Specifications
Sampling MethodDiffusion
Gas TypeNO, NO2
Measurement RangeSpecified according to application
ResolutionSpecified according to application
Response Time≤60S (T90)
Precision≤±5%FS or ±10% (depends on specific sensor)
LanguageChinese/English
Automatic FunctionsAuto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
UnitsPPM and mg/m³ switchable display with automatic concentration conversion
DisplaySegment code LCD display
Calibration PlatformDKM-MicMeta docking station (optional)
Data Recording1000 data records and 100 events records
Alarm System95dB buzzer (@30cm), vibration, flashing red bars, screen indicators; diagnostic, battery under voltage, man down alarms; user-adjustable set points
Battery3.7V rechargeable lithium battery, 2300mAh capacity
Working HoursStandby time 18h, charging time <6h
Wireless TransmissionBluetooth (optional), Lora (optional)
Explosion-proof GradeCNEX: Ex ia IIC T4 Ga
EU Regulations2004/108/EC (EMC), 94/9/EC (ATEX), CE
Protection GradeIP66/IP68
Working Temperature-20°C to 55°C
Humidity0-95%RH (non-condensing)
Environmental Pressure86-106Kpa
Size113×60×32mm (length × width × height)
Weight200g (with lithium battery)
Applications
  • Factory peripheral ambient air nitrogen oxides pollution regular monitoring
  • Industrial boiler tail gas NOX emission environmental law enforcement detection
  • Tunnel construction vehicle exhaust gas concentration safety inspection
  • Chemical plant waste gas multi nitrogen oxide pollutant data recording
  • Cement kiln flue gas NOX emission limit compliance testing
  • Municipal waste incineration station exhaust pollutant real-time patrol
  • And more...
Product Images

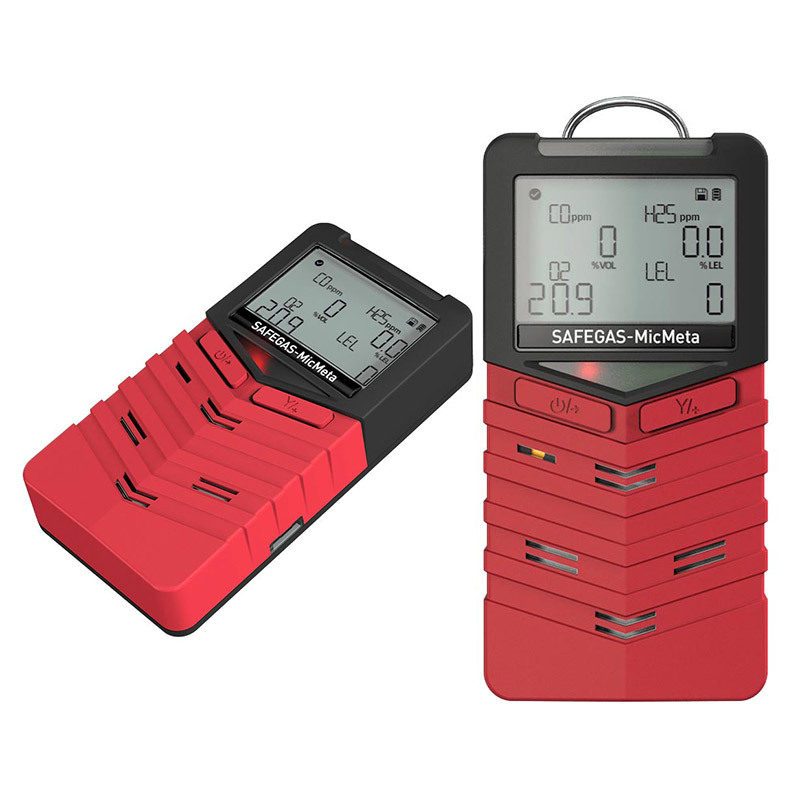

MicMeta multi-gas detector front view showing LCD display and compact design

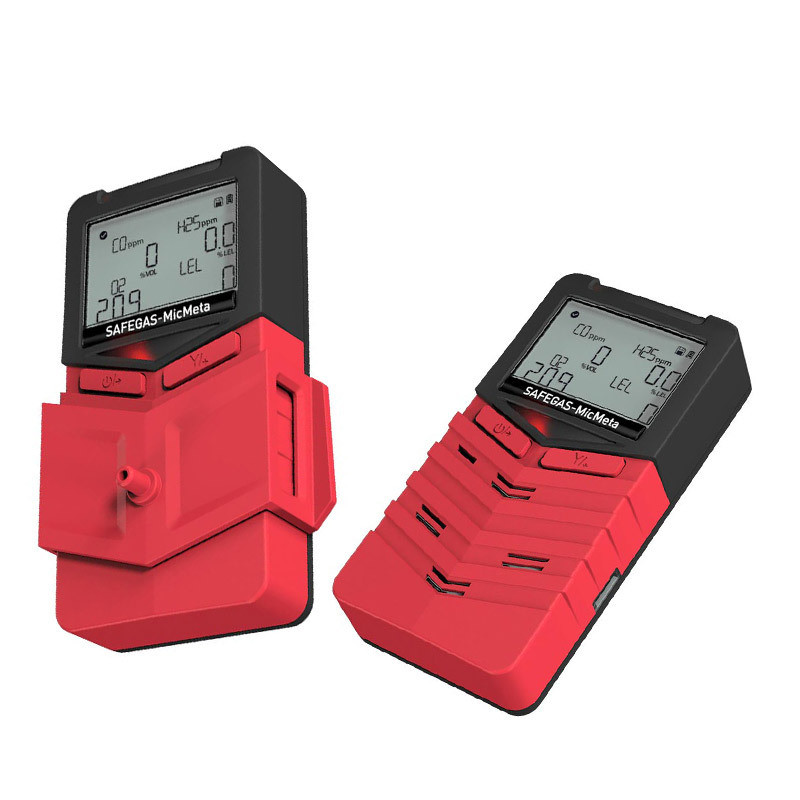

MicMeta multi-gas detector side view with back clip for wearable use
Product Advantages
IP66/IP68 water & dust resistant and 1.5 meters drop resistant case, rugged and durable designs
Compact, lightweight, small size with back clip, ergonomic and wearable design
Standard man down alarm, password protection, ID identification function
Real time value, TWA, STEL, MAX, MIN multiple numerical display
With self-test function, which can improve safety by automatic self-test
Standard 1000 data records and 100 events records
Support firmware upgrade remotely
With docking station to perform daily bump test and calibration (Optional)
Wireless data transmission including Lora, Bluetooth (Optional)
Low power consumption, battery run time is up to 24 hours per charge
Company Information
Safegas specializes in environmental monitoring equipment and systems with 16 years of industry experience. Our core product line includes gas detectors with complete solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Safegas company facility and manufacturing environment
Safegas operates under the management philosophy: "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." Our corporate culture emphasizes friendliness, openness, and strict standards, attracting talented professionals who maintain deep commitment to customer-oriented service.
Safegas research and development team working on environmental monitoring technology
Leveraging extensive measurement experience and proprietary solutions developed through independent R&D and international technology partnerships, Safegas products maintain domestic advanced status and compete effectively with international brands. We continuously pursue development to meet diverse customer requirements.
Safegas product testing and quality assurance processes
